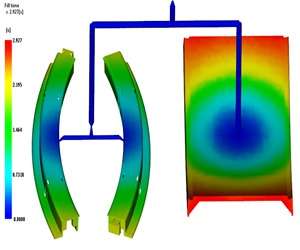

Filling Time Analysis
Moldflow filling time analysis to evaluate flow balance, short-shot risk, gate performance and filling sequence before tooling decisions.
Injection Molding Simulation Case Studies
Injection Molding & Moldflow Project Examples
Representative molding analysis projects for filling, packing, cooling, warpage, gate location, weld lines, air traps and tooling risk reduction.
Project Coverage
26
molding simulation examples
5
project groups
Filling
cooling, warpage and tooling risk studies
Project Library
Injection molding examples organized by process and tooling decision.
The project library prioritizes injection molding analysis while retaining selected gas-assist, blow molding and casting support examples for related process questions.
Project descriptions and images are presented at a representative level. Client names and proprietary details are omitted or generalized where required.
6 Project Examples
Filling, Packing and Pressure
Moldflow examples for filling sequence, pressure development, runner balance and flow-front temperature review.
Explore Moldflow Analysis
Animated simulation result
AnimationFill sequenceMelt front

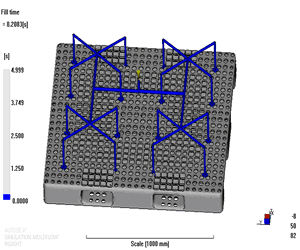

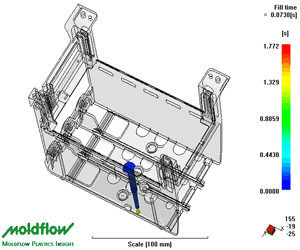

Filling Time Animation
Animated filling simulation to visualize melt-front progression and identify potential imbalance or hesitation regions.
Injection pressurePackingProcess review

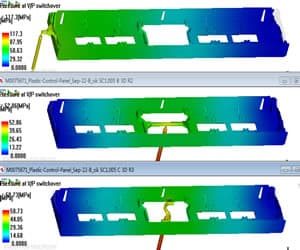

Injection Pressure Analysis
Injection pressure review to estimate pressure requirement, identify high-resistance areas and support process discussion.
Show all 3 remaining examples
- Pressure at V/P SwitchoverV/P switchoverPressureProcess window
- Runner Balance AnalysisRunner balanceMulti-cavityFlow distribution
- Temperature at Flow FrontFlow frontTemperatureFilling risk
5 Project Examples
Weld Line, Sink Mark and Shrinkage
Case examples focused on visible quality risks and dimensional problems caused by filling, packing and cooling behavior.
Explore Moldflow Analysis
Weld lineGate locationPart quality
Weld Line Analysis
Weld line analysis to locate flow-front meeting regions and support gate, part or process changes before tooling release.
Sink markCosmetic riskWall thickness
Sink Mark Analysis
Sink mark review to identify thick-section risks, cosmetic issues and areas where geometry or process changes may be needed.
ShrinkageDimensional changeCooling
Shrinkage Analysis
Shrinkage analysis to evaluate material and process-driven dimensional change after molding and cooling.
Show all 2 remaining examples
- Air Trap and Filling Risk ReviewAir trapVentingFilling risk
- Volumetric Shrinkage at EjectionVolumetric shrinkageEjectionDimensional risk
4 Project Examples
Warpage, Deflection and Fiber Orientation
Moldflow examples for deformation prediction, fiber-driven behavior and shear-related part quality risks.
Explore Moldflow Analysis
WarpageDeformationPart quality

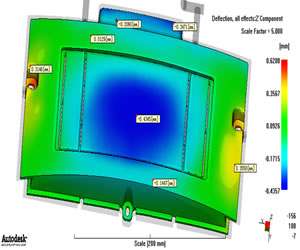

Warpage Analysis
Warpage analysis to predict molded part deformation caused by material behavior, geometry, packing and cooling conditions.
DeflectionDimensional controlMolded part
Deflection Result Review
Deflection result review to identify deformation pattern and support design or tooling decisions for dimensional control.
Fiber orientationMaterial behaviorWarpage
Fiber Orientation Analysis
Fiber orientation analysis to understand anisotropic material behavior and its effect on shrinkage, strength and warpage.
Show all 1 remaining examples
- Shear Rate and Shear Stress AnalysisShear rateShear stressProcess risk
6 Project Examples
Cooling and Tooling Optimization
Examples for cooling layout, conformal cooling, coolant behavior, freeze time and tooling-related thermal risk review.
Explore Moldflow Analysis
Cooling designToolingTemperature
Cooling Design Analysis
Cooling design analysis to review cooling line layout, part temperature control and tooling performance.
Conformal coolingToolingCycle time

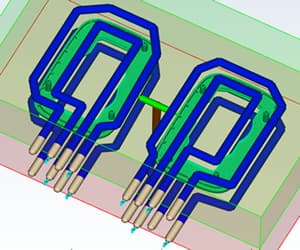

Conformal Cooling Design
Conformal cooling review to compare cooling effectiveness and reduce cycle time or warpage risk for complex molded parts.
CoolantTemperatureCooling circuit

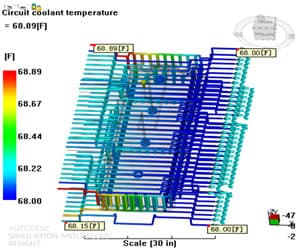

Coolant Temperature Analysis
Coolant temperature review to evaluate cooling circuit behavior and part temperature control during molding.
Show all 3 remaining examples
- Time to Reach Injection TemperatureTemperatureThermal historyProcess timing
- Time to Freeze AnalysisFreeze timeCoolingSolidification
- Frozen Layer and Polymer Skin ReviewFrozen layerPolymer skinCooling
5 Project Examples
Secondary Molding and Casting Support
Special molding and casting examples for gas core formation, blow molding, casting flow and machine force review.
Explore Moldflow Analysis
Gas assistMoldingHollow section
Gas Assist Molding Analysis
Gas-assist molding analysis to evaluate gas penetration, material displacement and molding feasibility for hollow or thick sections.
Animated simulation result
Gas coreGas assistProcess review

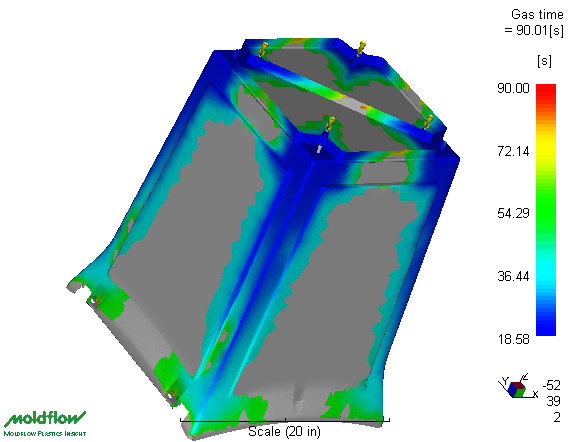

Gas Core Result
Gas core result review to understand gas channel formation and compare process behavior for gas-assisted molded parts.
Blow moldingWall distributionProcess
Blow Molding Analysis
Blow molding simulation support to evaluate forming behavior, wall distribution and process feasibility.
Show all 2 remaining examples
- Alloy Casting AnalysisCastingFillingSolidification
- Clamp Force ReviewClamp forceMachine selectionProcess planning
How FEAmax Supports Similar Projects
From part geometry and material data to molding recommendations.
- 01
Review part geometry, resin data, gate concepts, machine limits and quality targets
- 02
Define molding process assumptions, mesh strategy and analysis sequence
- 03
Evaluate filling, pressure, cooling, weld lines, air traps and warpage results
- 04
Provide practical recommendations for part design, gate strategy, tooling and process settings
26 Representative Examples
Need support for an injection molding project?
Share part CAD, resin information, gate concepts and known molding concerns. FEAmax can recommend the Moldflow studies needed before tooling or process changes.
